Hercules Wireless N Router H WNR -300

16/102 – User Manual

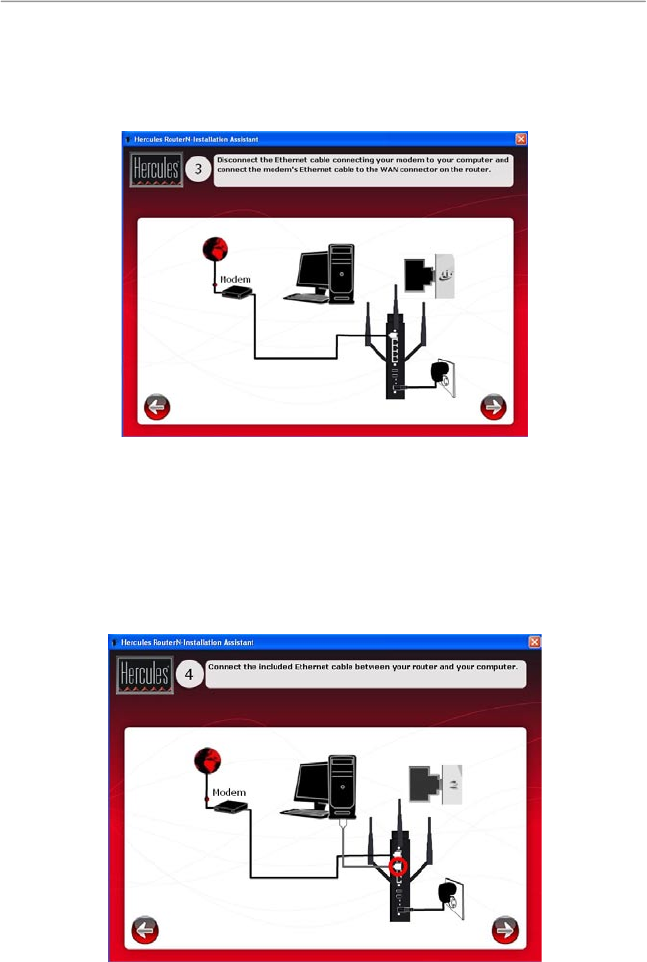

Step 3

- Disconnect the cable connecting your modem to your computer, and connect it to the WAN port on your

Hercules Wireless N Router.

The power LED lights up and the W i F i LED flashes. The Internet (WAN) LED lights up and flashes during

data transfer.

- Click Next (the arrow symbol).

Step 4

- Connect one end of the included Ethernet cable to one of the four Ethernet ports on your Hercules

Wireless N Router, and the other end to your computer's Ethernet port.

The LED corresponding to the number of the Ethernet port you have selected lights up.

- Click Next (the arrow symbol).
